Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation

  • Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation
  • Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation
  • Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation
  • Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation
  • Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation
  • Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation
Τόπος καταγωγής ΚΙΝΑ
Μάρκα CSTY
Πιστοποίηση GB/T19001-2016/ISO9001:2015
Αριθμό μοντέλου SS 316L
Ποσότητα παραγγελίας min 10 κιλά
Τιμή $80.00 - $110.00/ Piece
Συσκευασία λεπτομέρειες Φόρμα και ξύλινη θήκη, συσκευασία από χαρτόνι μπορεί να είναι σύμφωνα με τις απαιτήσεις του πελάτη.
Χρόνος παράδοσης 15 ~ 20 εργάσιμες ημέρες
Όροι πληρωμής L/C, T/T, Western Union, MoneyGram, PayPal
Δυνατότητα προσφοράς 5000 χιλιόγραμμα/χιλιόγραμμα ανά μήνα

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Ακρίβεια διήθησης 0,1UM Αντοχή στην τριβή Ψηλά
χαρακτηριστικός Χρησιμοποιείται σε πολύ διαβρωτικό περιβάλλον Περιοχή διήθησης 0.3-1.0m2
Προσδιορισμός 0.5um, 2um, 5um, 10um, Διάμετρος 50-1000 χιλιοστά
Υλικό Titanium, SS 316L, Inconel600, κλπ. Υπηρεσία δειγμάτων Παρέχετε το δείγμα για τη δοκιμή
Τύπος μέταλλο, δίσκος φίλτρου SS Πρότυπο ISO9000
Πίεση εργασίας 2-3Mpa Συσκευασία Τυποποιημένο πακέτο εξαγωγής
Διάρκεια ζωής 2-5 χρόνια Μέγιστη πίεση 2.0Mpa
Διάσταση προσαρμοσμένος
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων

Introduction



Compared with the traditional filtration materials such as paper, cotton, PP, PE, PES, PTFE, etc., the metal powder sintered porous materials have good permeability, pore size and pore control, stable shape, high filtration accuracy, wear resistance, good mechanical properties, good heat conduction, heat resistance, and heat dissipation, and can be repeatedly washed and used for many times.



Specifications



Product name Sintered plate
Material Pure titanium/SS316L/Bronze/Inconel600
Size OD20-80*WT2.5-3.0*L10-1200mm
Filter accuracy 0.5-80microns
Connection Customized according to customer requirements
Application Sparging, Separation and filtration, Carbonisation, Liquid filtration, etc.



Parameter



Filter accuracy Porosity Penetrability

Compression

strength

Temperature

toleration

Max working

pressure
0.5-50μm 20-50% 3-800m³/㎡hkpa 2-3Mpa 250℃ 0.6Mpa



Application



It can be widely used in the electronic industry, water treatment industry, food industry, biotechnology, chemical industry, petrochemical industry, metallurgical industry, and gas purification, which is a new filter with broad development prospects.

1) Sparging

2) Separation and filtration

3) Carbonisation

4) Liquid filtration

5) Catalyst recovery

6) Steam filtration

7) Slurry oil filtration

8) Flame arrestors

9) Silencing

10) Fluid distribution and control

11) Semiconductor industry

12) Fuel cell stack

13) Coating electrode

14) Damping

15) Heat exchange

16) Bio-implants



Properties



1) Pore diameter uniformity, pore stability, and high separation efficiency.

2) High porosity, low filtration resistance, and high permeability.

3) Good chemical stability, acid, and alkali corrosion resistance, oxidation resistance.

4) Morphological stability, no particle shedding, compliance with food hygiene and pharmaceutical GMP requirements.

5) Good mechanical properties, low differential pressure, and large flow.

6) Strong anti-microbial ability, does not interact with microorganisms.

7) Online regeneration, easy cleaning, and long service life.

8) Excellent biocompatibility, can be widely used in biological, food, pharmaceutical, and medical industries.

9) Excellent electromagnetic shielding performance.

10) Good damping and shock resistance.

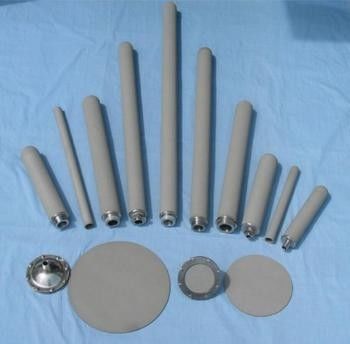

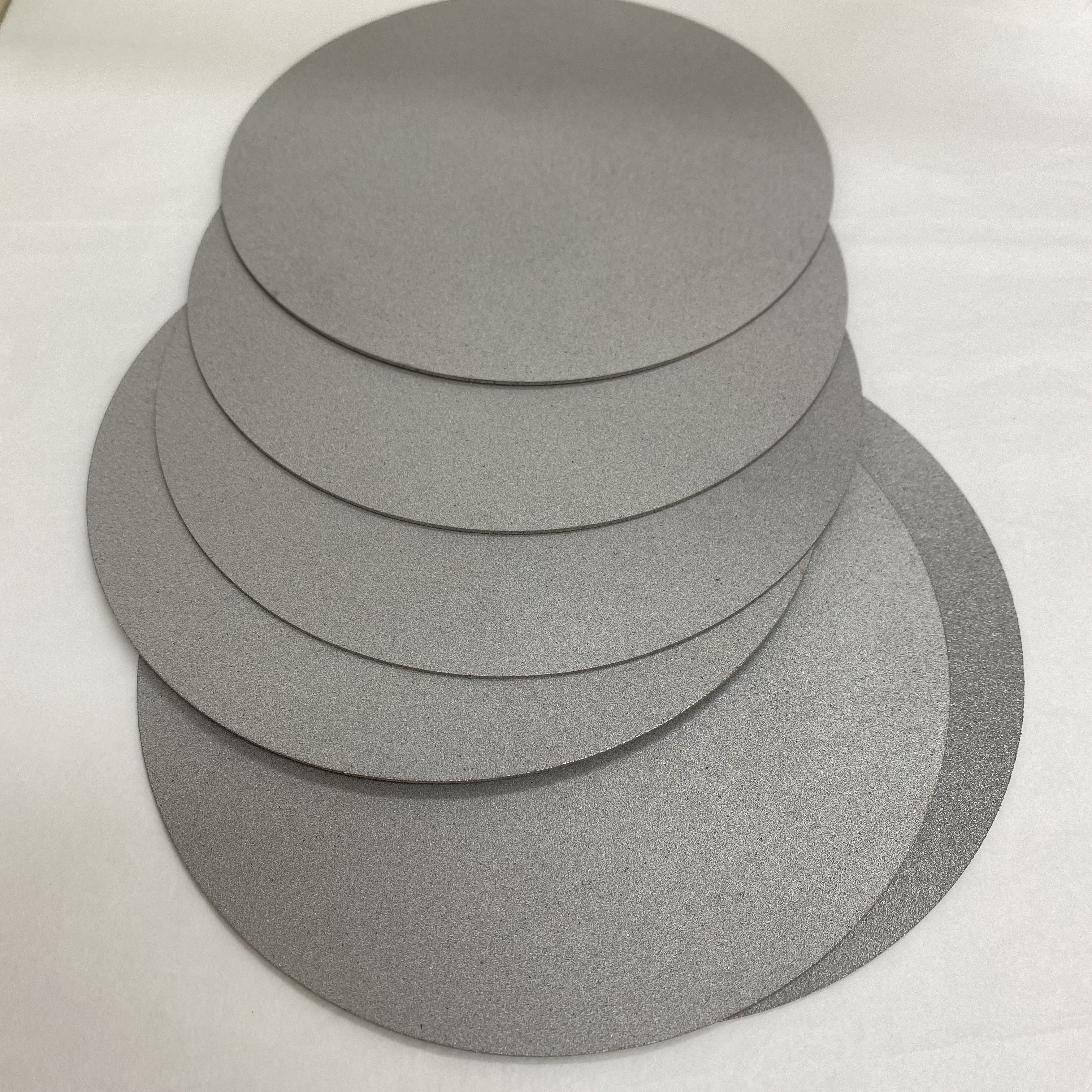

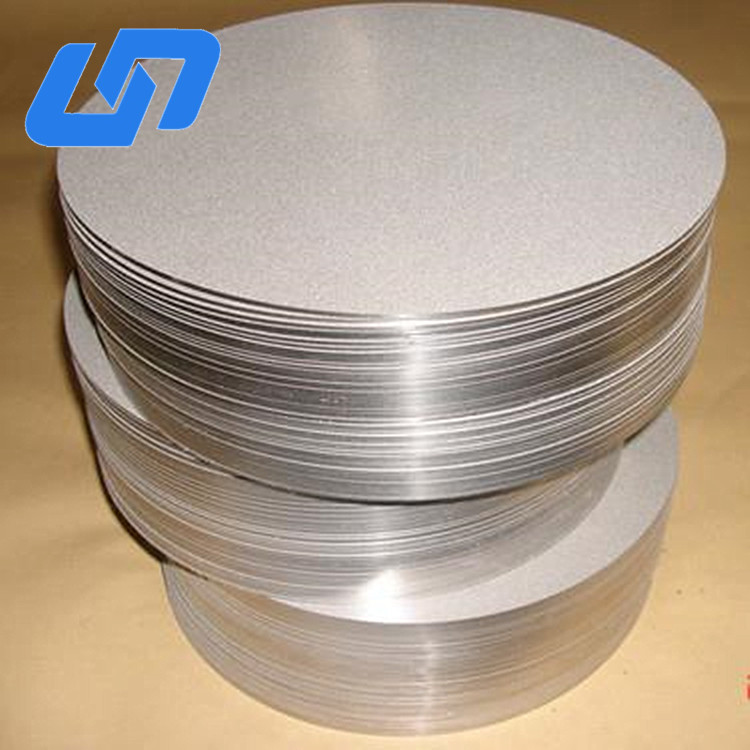

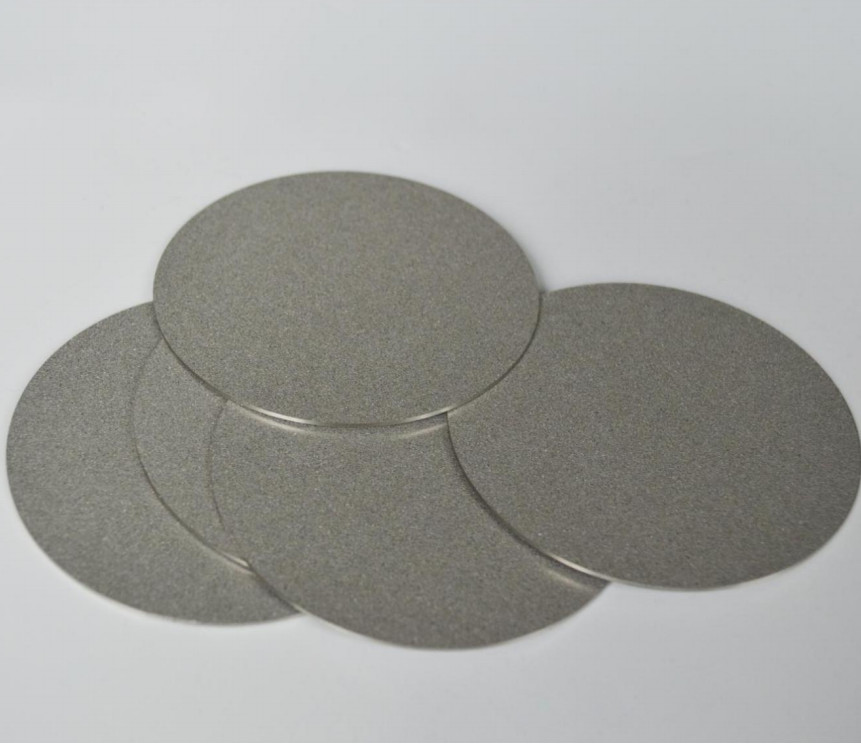

Product photo
